In this exercise we will experiment with some of the methods of the String class. We will write a program that examines a *nix-style pathname, and breaks it into its components.

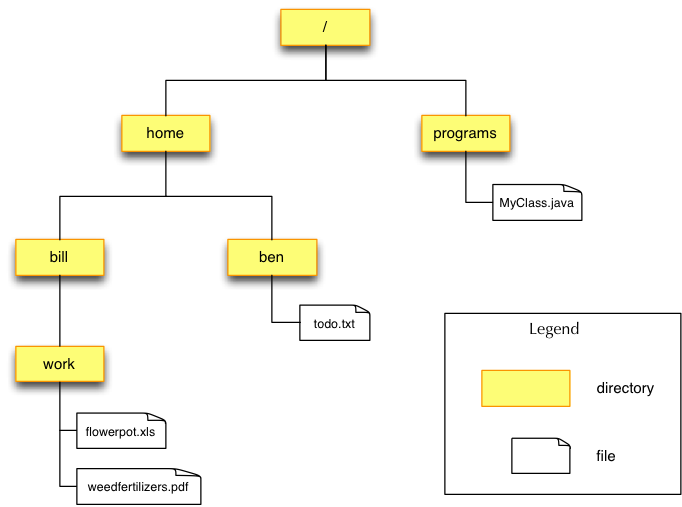

Directories and files on *nix style filesystem are structured as a tree. An example is shown below.

In this example, there are a total of four files in six directories. The full pathnames of the files are:

/home/bill/work/flowerpotlist.xls
/home/bill/work/weedfertilisers.pdf
/home/ben/todo.txt
/programs/MyClass.java

and the directories are:

/
/home/
/home/bill/
/home/bill/work
/home/ben/
/programs/

If we remove the directory portion from the pathnames, we are left with the files’ basenames, such as flowerpotlist.xls.

All the pathnames have a suffix consisting of a period followed by some further characters. These suffixes are called file extensions. The file extensions in this example are:

.xls
.pdf
.txt
.java

Write a class SplitPathName containing a static method splitPath() that splits a pathname into components. The method has the following signature:

public static String[] splitPath(String s)

splitPath() should return an array of four Strings.

• The first element of the array should be the directory path that the file is in (including the trailing slash).
• The second element should be the basename including extension, if any.
• The third element should be the basename without the extension.
• The fourth element should be the file extension, if any.

For example:

String[] components = splitPath("/home/bill/work/weedfertilisers.pdf");
//components[0] == "/home/bill/work/"
//components[1] == "weedfertilisers.pdf"
//components[2] == "weedfertilisers"
//components[3] == ".pdf"

String[] components = splitPath("ben/todo");
//components[0] == "ben/"
//components[1] == "todo"
//components[2] == "todo"
//components[3] == ""

You will need to use the methods of the String class, in particular:

• indexOf()
• lastIndexOf()
• substring()

Check the Java string API documentation to find out more about how the methods work.

Write a main() method which reads a list of pathnames as command-line arguments, and for each one, prints out the basename, the file extension and the directory that the file is in, enclosed by square brackets. For example:

: java SplitPathName /home/ben/todo.txt /home/bill/work/flowerpotlist.xls /programs/MyClass.java
File: todo.txt Type: .txt [/home/ben/]
File: flowerpotlist.xls Type: .xls [/home/bill/work/]
File: MyClass.java Type: .java [/programs/]

The skeleton of your main() method should look something like this:

public static void main(String args[]) {

     // for each argument:
     {
         // String[] components = splitPath( argument );
         // print out the components of argument accordingly
     }

 }

You will have noticed in the previous question that most of the pathnames began with a forward slash, so called absolute paths. However, this is not always the easiest way of referring to a file. When we open a terminal, we can access all the files in subdirectories of our current directory by just using the path that names the relevant subdirectory. For example, if my current working directory is /home/bill, then I can use the pathname work/flowerpotlist.xls rather than the absolute path /home/bill/work/flowerpotlist.xls This is known as using a relative path. A relative path can be turned into an absolute path by prepending the current working directory.

Your current working directory can be discovered in Java by calling System.getProperty("user.dir"). For example:

String currentDir = System.getProperty("user.dir");

Create a new class AbsolutePath containing two static methods. The first of these, ensureAbsolute(), has the following signature:

public static String ensureAbsolute(String path)

This returns path unchanged if it is already an absolute path (i.e., if it starts with a slash), and if not it converts the relative pathname to an absolute one and returns that.

The second method, absoluteSplitPath(), has the following signature:

public static String[] absoluteSplitPath(String s)

This behaves just like splitPath() except that the first element, i.e., components[0], must be an absolute pathname. Rather than duplicating the code from splitPath(), you should call it from within absoluteSplitPath(). Since it lives in a different class, you have to refer to it with a so-called qualified name, that is, as SplitPathName.splitPath()
