The name feature has been around in Linguistics for a long time

The basic idea is to capture generalisations by decomposing monolithic categories into collections of simpler features

Originally developed for phonology, where we might have e.g.

• /i/  +high, +front
• /e/  -high, +front
• /o/  -high, -front
• /u/  +high, -front

Where we can now 'explain' why /i/ and /u/ behave similarly in certain cases, while /i/ and /e/ go together in other cases.

Those are all binary features

• sometimes also used at the level of syntax:

• +/- singular; +/- finite

But more often we find features whose values are some enumerated type

person: {1st,2nd,3rd}; number: {sg, pl}; ntype: {count, mass}

We'll follow J&M and write collections of features like this:

$\left[\begin{array}{ll}\text{person}& \text{3rd}\\ \text{number}& \text{pl}\end{array}\right]$

It will be convenient to generalise and allow features to take feature bundles as values:

$\left[\begin{array}{ll}\text{ntype}& \text{count}\\ \text{agreement}& \left[\begin{array}{ll}\text{person}& \text{3rd}\\ \text{number}& \text{pl}\end{array}\right]\end{array}\right]$

We can now add feature bundles to categories in our grammars

In practice we allow some further notational conveniences:

• Not all features need be specified (e.g. the number feature for 'sheep')
• In rules, we allow the values of features to be variables
• And we can add constraints in terms of those variables to rules

For example

• $\text{N}\left[\begin{array}{ll}\text{ntype}& \text{count}\\ \text{agreement}& \left[\begin{array}{ll}\text{person}& \text{3rd}\\ \text{number}& \text{pl}\end{array}\right]\end{array}\right]\to \text{men}|\text{dogs}|\text{cats}|\text{...}$

• $\text{NP}\left[\begin{array}{ll}\text{agreement}& x\end{array}\right]\to \text{D}\left[\begin{array}{ll}\text{agreement}& y\end{array}\right]\text{N}\left[\begin{array}{ll}\text{agreement}& z\end{array}\right]x=y=z$

At one level, features are just a convenience

The allow us to write lexicon entries and rules more transparently

But they also "capture generalisations"

If we write a pair of rules using some (in principle opaque) complex category labels, they are not obviously related in any way:

$S\to {\mathrm{NP}}_{\mathrm{sg}}{\mathrm{VP}}_{\mathrm{sg}}$

$S\to {\mathrm{NP}}_{\mathrm{pl}}{\mathrm{VP}}_{\mathrm{pl}}$

It appears as if we have to justify each of these independently

• or that we might have had one without the other
• or had

  $S\to {\mathrm{NP}}_{\mathrm{sg}}{\mathrm{VP}}_{\mathrm{pl}}$

  just as well

Whereas when we write

• $S\to \mathrm{NP}\mathrm{VP}[\text{<NP agreement>}=\text{<VP agreement>}]$

we are making a stronger claim, even though 'behind the scenes' this single line corresponds to a collection of simple atomic-category rules

Once you move to feature bundles as the values of features

• You can in principle have an infinite number of categories
  • By having one or more recursive features
• And, as with infinite numbers of rules, that actually changes your position on the Chomsky hierarchy

One strand of modern grammatical theory

• From GPSG to HPSG to so-called sign-based grammatical theories

Puts essentially all the expressive power of the grammar into feature structures

When we write '=' between two feature paths or feature variables, we mean more than an equality test

Consider the noun phrase "a sheep", and the following rules

• $\text{N}\left[\begin{array}{ll}\text{ntype}& \text{count}\\ \text{agreement}& \left[\begin{array}{ll}\text{person}& \text{3rd}\end{array}\right]\end{array}\right]\to \text{sheep}$

• $\text{D}\left[\begin{array}{ll}\text{agreement}& \left[\begin{array}{ll}\text{person}& \text{3rd}\\ \text{number}& \text{sg}\end{array}\right]\end{array}\right]\to \text{a}$

• $\text{NP}\left[\begin{array}{ll}\text{agreement}& x\end{array}\right]\to \text{D}\left[\begin{array}{ll}\text{agreement}& y\end{array}\right]\text{N}\left[\begin{array}{ll}\text{agreement}& z\end{array}\right]x=y=z$

The resulting parse tree reveals that we have not only tested for compatibility between the various feature structures, we've actually merged them:

where by the ① we mean that all three agreement values are the the same feature structure

The implications of unification run deep

The three occurrences of ① don't just appear the same

• They are the same
• That is, a single structure, shared 3 times
• So any change to one in the future will be a change to all

• As would be the case with e.g. "the sheep runs" or "the sheep run"

J&M give a detailed introduction to unification, which is what this is called, in section 15.2 (J&M 2nd ed.), and a formal definition in section 15.4.

The directed acyclic graph (DAG) way of drawing feature structures used in J&M 15.4 makes clearer when necessary structure identity is the case, as opposed to contingent value equality

A parser is an algorithm that computes a structure for an input string given a grammar.

All parsers have two fundamental properties:

Directionality

The sequence in which the structures are constructed

• Almost always top-down or bottom-up

Search strategy

The order in which the search space of possible analyses is explored

• Usually depth-first, breadth-first or best-first

A recursive descent parser treats a grammar as a specification of how to break down a top-level goal into subgoals

This means that it works very similarly to a particular blind approach to constructing a rewriting interpretation derivation:

Directionality

Top-down:

• starts from the start symbol of the grammar
• works down to the terminals

Search strategy

Depth-first:

• expands the left-most unsatisfied non-terminal
• until it gets to a terminal
  • which either matches the next item in the input
  • or it doesn't

We're trying to build a parse tree, given

• a grammar
• an input, i.e. a sequence of terminal symbols

As for any other depth-first search, we may have to backtrack

• So we must keep track of backtrack points
• And whenever we make a choice among several rules to try, we add a backtrack point consisting of
  • a partial tree
  • the remaining as-yet-unexplored rules
  • and the as-yet-unconsumed items of input

Note that, to make the search go depth-first

• We'll use a stack to keep track
• That is, we'll operate last in, first out (LIFO)

Finally, we'll need a notion of where the focus of attention is in the tree we're building

• We'll call this the subgoal

The three imperative actions in the preceding algorithm are defined as follows:

Choose

Pick one member from the set of rules

1. If the set has only one member, you're done
2. Otherwise, push a new backtrack point onto the stack
   • With the unchosen rules, the current tree and subgoal and the current (unconsumed) input sequence

Advance

Change the subgoal, as follows:

1. If the current subgoal has a sibling to its right, pick that
2. Failing which, if the current subgoal is not the root, set the subgoal to the current subgoal's parent, and go back to (1)
3. Failing which, if the input is empty, we win
   • The current subgoal is the 'S' at the root, and it is the top node of a complete parse tree for the original input
4. Otherwise, Backtrack

Backtrack

Try to, as it were, change your mind. That is:

1. Unless the stack is empty, pop the top backtrack point off the backtrack stack and
   1. Set the tree, subgoal and input from it
   2. Choose a rule from its set of rules
   3. Go back to step (1b) of the algorithm
2. Otherwise (the stack is empty)
   • We lose!
   • There is no parse for the input with the grammar

We'll see the operation of this algorithm in detail in this week's lab

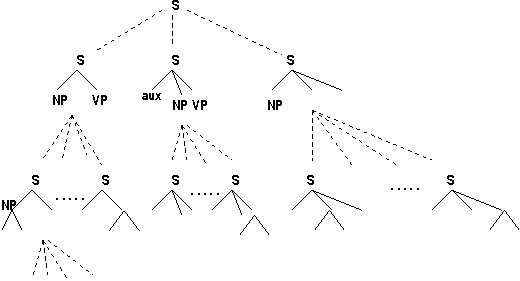

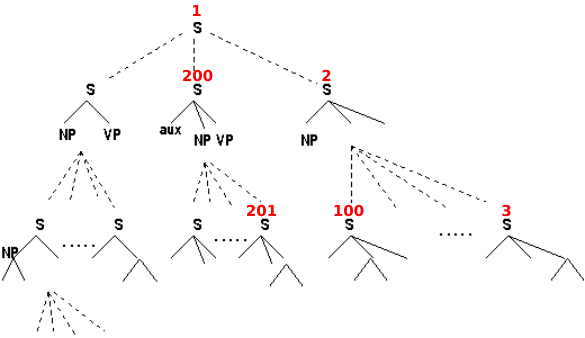

Schematic view of the top-down search space:

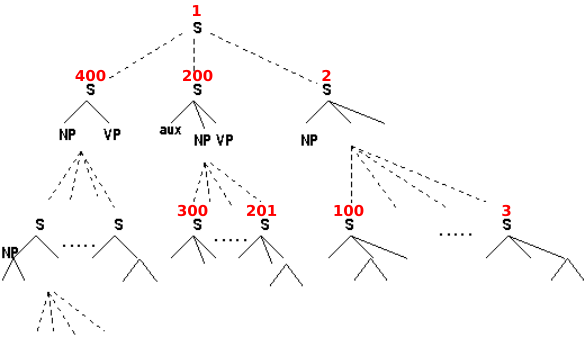

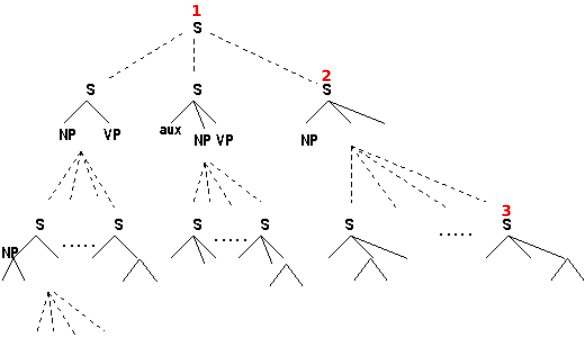

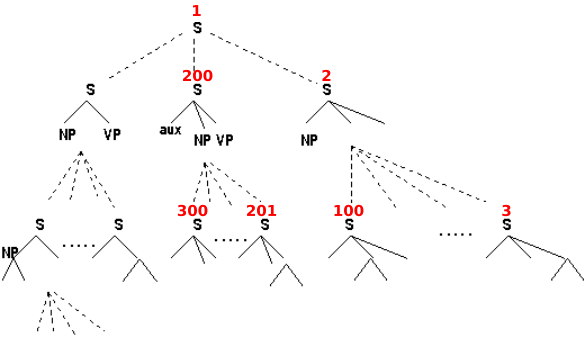

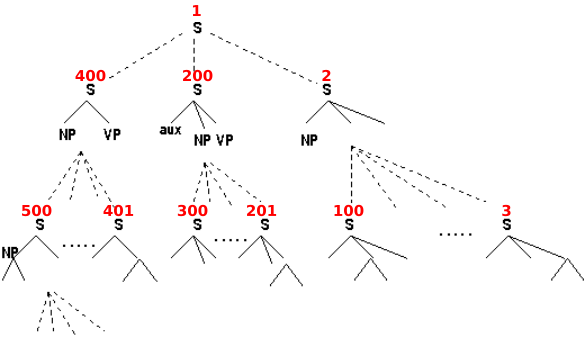

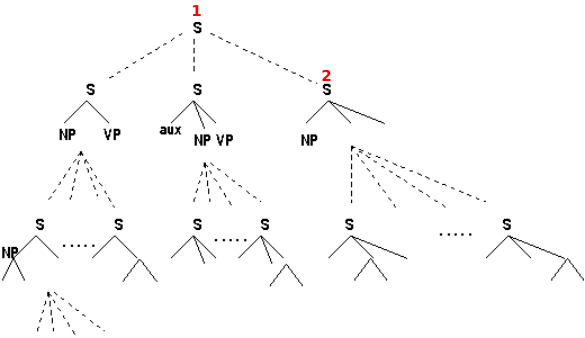

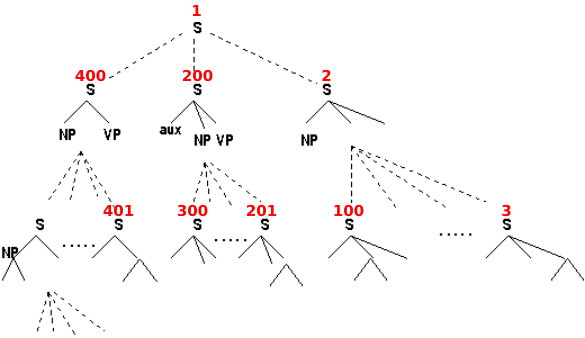

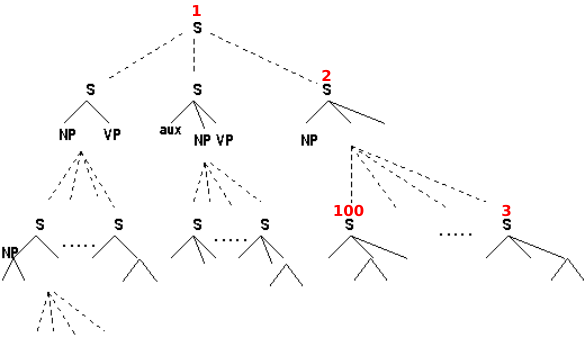

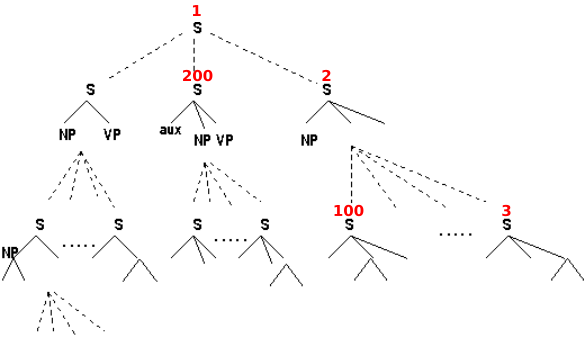

In depth-first search the parser

• explores one branch of the search space at a time
• For example, using a stack (last-in, first-out) of incomplete trees to try to expand

• If a branch of the space is a dead-end, it needs to backtrack

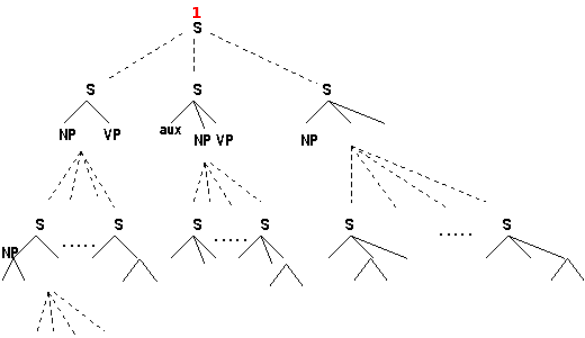

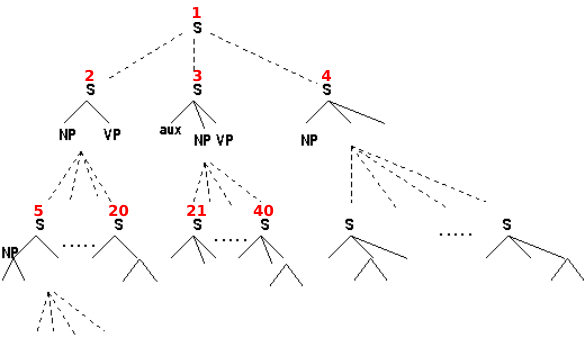

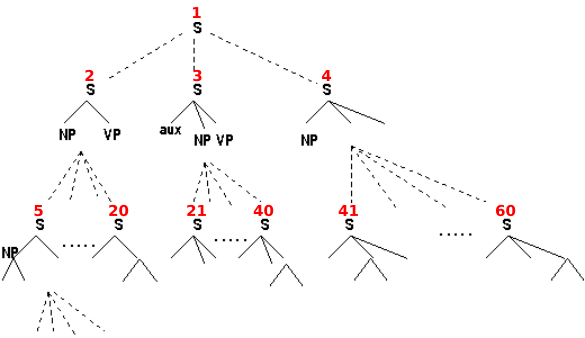

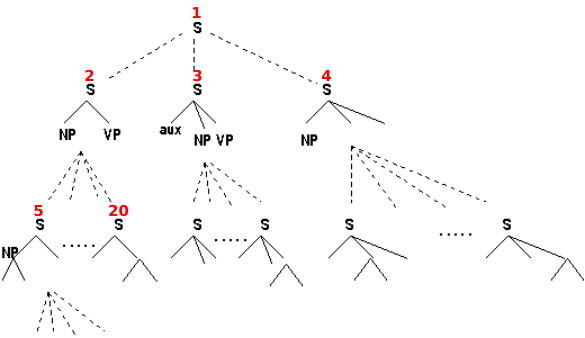

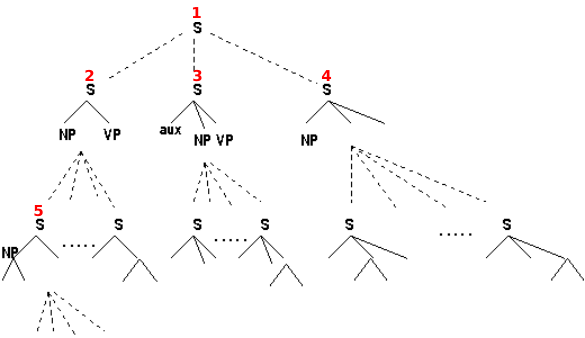

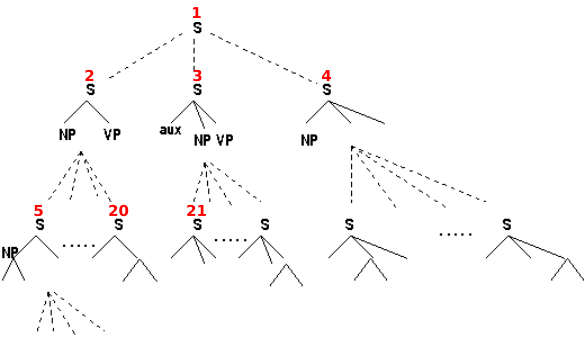

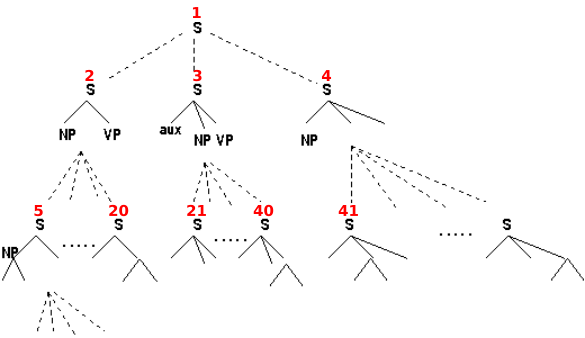

In breadth-first search the parser

• explores all possible branches in parallel
• For example, using a queue (first-in, first out) of incomplete trees to try to expand

The bottom-up search space works, as the name implies, from the leaves upwards

• Trying to build and combine small trees into larger ones
• The parser we look at in detail in the next lectures works that way

Search strategy does not imply a particular directionality in which structures are built.

Recursive descent parsing searches depth-first and builds top-down

Although Shift-reduce parsing also searches depth-first, in contrast it builds structures bottom-up.

It does this by repeatedly

1. shifting terminal symbols from the input string onto a stack
2. reducing some elements of the stack to the LHS side of a rule when they match its RHS

As described, this is just a recogniser

• You win if you end up with a single 'S' on the stack and no more input

Actual parsing requires more bookkeeping

Given certain constraints, it is possible to pre-compute auxiliary information about the grammar and exploit it during parsing so that no backtracking is required.

Modern computer languages are often parsed this way

• But grammars for natural languages don't (usually) satisfy the relevant constraints

A string can have more than one structural analysis (called global ambiguity) for one or both of two reasons:

• Grammatical rules allow for different attachment options;
• Lexical rules that allow a word to be in more than one word class.

Within a single analysis, some sub-strings can be analysed in more than one way

• even if not all these sub-string analyses 'survive'
• That is, if they are not compatible with any complete analysis of the entire string
• This is called local ambiguity

Local ambiguity is very common in natural languages as described by formal grammars

All depth-first parsing is inherently serial, and serial parsers can be massively inefficient when faced with local ambiguity.

Depth-first parsing strategies demonstrate other problems with "parsing as search":

1. Structural ambiguity in the grammar and lexical ambiguity in the words (that is, words occurring under more than one part of speech) may lead the parser down a wrong path
2. So the same sub-tree may be built several times
   • whenever a path fails, the parser abandons any subtrees computed since the last backtrack point, backtracks and starts again

The complexity of this blind backtracking is exponential in the worst case because of repeated re-analysis of the same sub-string.

• We'll experience this first-hand in this week's lab

Chart parsing is the name given to a family of solutions to this problem

It seems like we should be able to avoid the kind of repeated reparsing a simple recursive descent parser must often do

A CFG parser, that is, a context-free parser, should be able to avoid re-analyzing sub-strings

• because the analysis of any sub-string is independent of the rest of the parse

The parser's exploration of its search space can exploit this independence

• if the parser uses dynamic programming.

Dynamic programming is the basis for all chart parsing algorithms.

Given a problem, dynamic programming systematically fills a table of solutions to sub-problems

• A process sometimes called memoisation

Once solutions to all sub-problems have been accumulated

• DP solves the overall problem by composing them

For parsing, sub-problems are analyses of sub-strings

• which can be memoised
• in a chart
• also know as a well-formed substring table, WFST

Each entry in the chart or WFST corresponds to a complete constituent (sub-tree), indexed by the start and end of the sub-string that it covers

• Active chart parsing goes further, and uses the chart for partial results as well

A well-formed substring table (aka chart) can be depicted as either a matrix or a graph

• Both contain the same information

When a WFST (aka chart) is depicted as a matrix:

• Rows and columns of the matrix correspond to the start and end positions of a span of items from the input
  • That is, starting right before the first word, ending right after the final one
• A cell in the matrix corresponds to the sub-string that starts at the row index and ends at the column index
• A cell can contain
  • information about the type of constituent (or constituents) that span(s) the substring
  • pointers to its sub-constituents
  • (In the case of active chart parsers, predictions about what constituents might follow the substring)

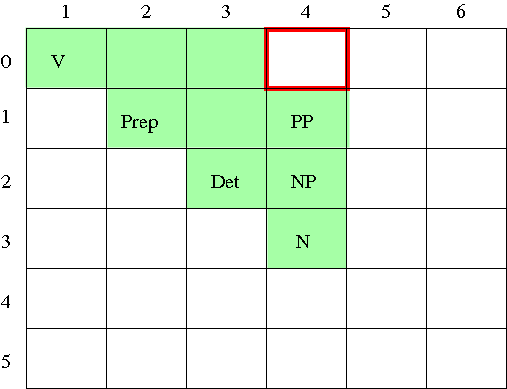

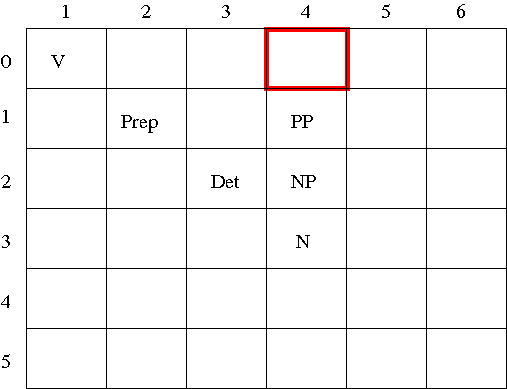

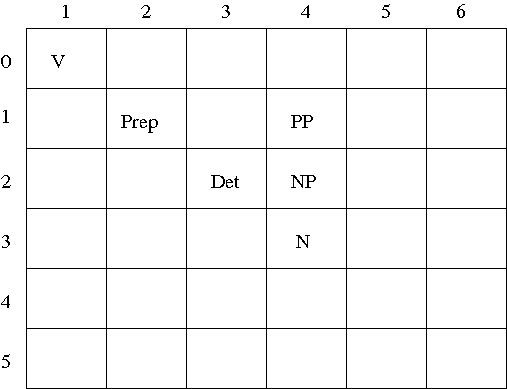

Here's a sample matrix, part-way through a parse

      ₀ See ₁ with ₂ a ₃ telescope ₄ in ₅ hand ₆

We can read this as saying:

• There is a PP from 1 to 4
  • Because there is a Prep from 1 to 2
  • and an NP from 2 to 4

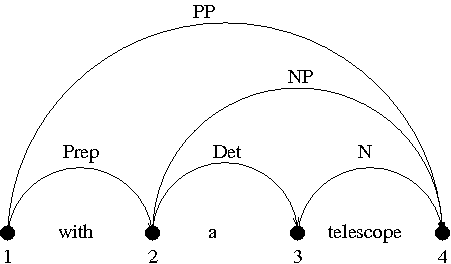

A sample graph, for the same situation mid-parse

• Here, nodes (or vertices) represent positions in the text string, starting before the first word, ending after the final word.
• arcs (or edges) connect vertices at the start and the end of a span to represent a particular substring
  • Edges can be labelled with the same information as in a cell in the matrix representation

Important examples of parser types which use a WFST include:

• The CKY algorithm, which memoises only complete constituents
• Three algorithm families that involve memoisation of both complete and incomplete constituents
  • Incomplete constituents can be understood as predictions
    • bottom-up chart parsers
      • May include top-down filtering
    • top-down chart parsers
      • May include bottom-up filtering
    • the Earley algorithm

CKY (Cocke, Kasami, Younger) is an algorithm for recognising constituents and recording them in the chart (WFST).

CKY was originally defined for Chomsky Normal Form

$\begin{array}{l}A\to BC\\ A\to a\end{array}$

• (Much more recently, this restriction has been lifted in a version by Lang and Leiss)
• The example below follows them in part, also allowing unary rules of the form $A\to B$

We can enter constituent A in cell (i,j) iff either

• there is a rule A → b and
  • b is found in cell (i,j)
• or if there is a rule A → B C and there is at least one k between i and j such that
  • B is found in cell (i,k)
  • C is found in cell (k,j)

Proceeding systematically bottom-up, CKY guarantees that the parser only looks for rules which might yield a constituent from i to j after it has found all the constituents that might contribute to it, that is

• That are shorter than it is
• That end at or to the left of j
• This guarantees that every possible constituent will be found
•
•

Note that this process manifests the fundamental weakness of blind bottom-up parsing:

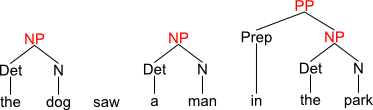

• Large numbers of constituents will be found which do not participate in the ultimately spanning 'correct' analyses.

Nom: nominal (the part of the NP after the determiner, if any)

SRel: subject relative clause, as in the frogs that ate fish.

Non-terminals occuring (only) on the LHS of lexical rules are sometimes called pre-terminals

• In the above grammar, that's Det, N, Prep, TV, IV, Relpro

Sometimes instead of sequences of words

• we just parse sequences of pre-terminals
• At least during grammar development
